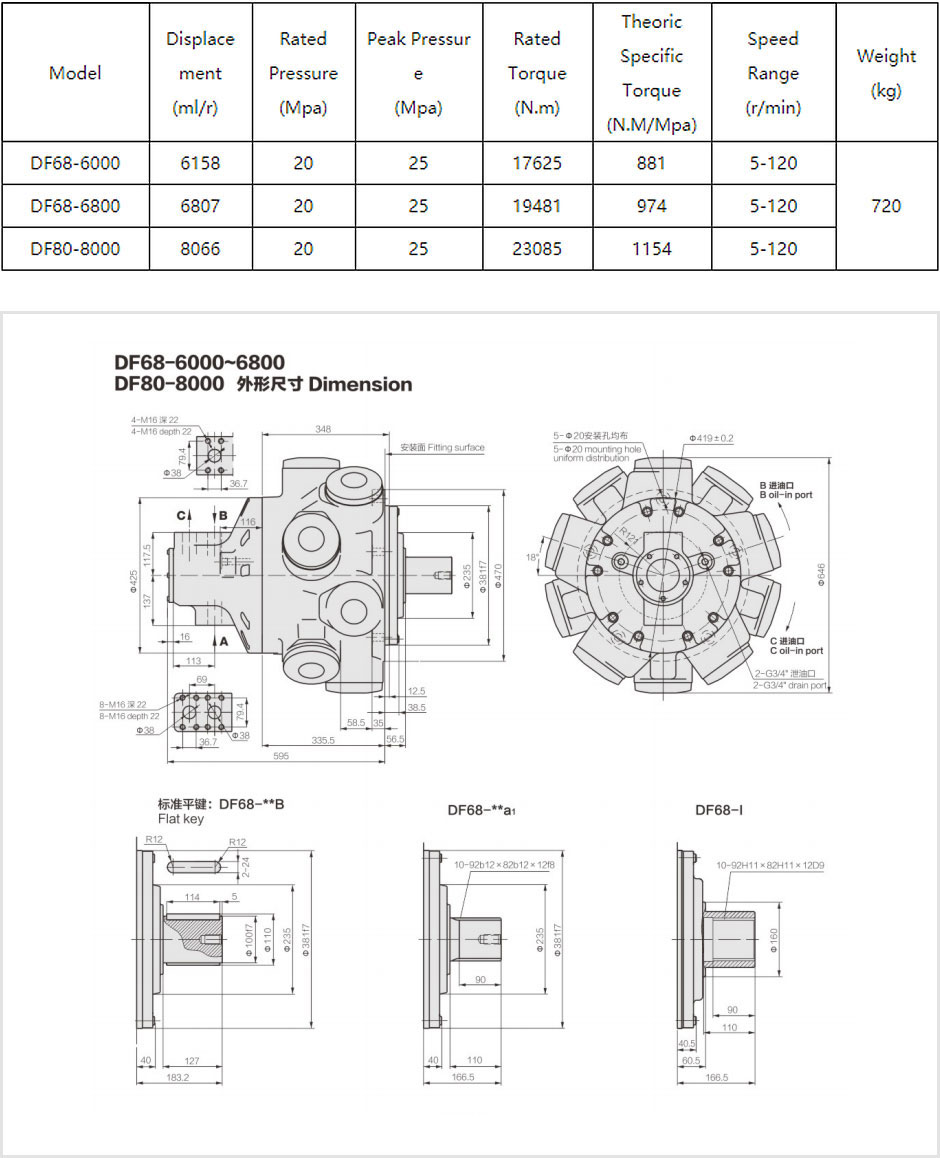

DF68-DF80

Product features

DF series motor is my company’s latest new structure of the motor. It absorbs the advantages of crankshaft type hydraulic motors at home and abroad, greatly improving the hydraulic motor pressure rating. This series of motors has a series of features such as reliability, high efficiency, long life, low noise and wide speed range. It can be used in hydraulic transmission of various machinery such as ship, mine, building metallurgy, oil, coal mine, geological drilling, plastics industry System.
Main feature
1, DF series hydraulic motor in the connecting rod and crankshaft movement between the design of static pressure balance structure, so that the friction was good lubrication, improve the shaft force.
2, due to friction loss and heat to reduce the mechanical efficiency and start-up efficiency of the motor, the mechanical efficiency and the starting efficiency of the motor are improved due to the loss of friction work and the heat generation, and thus the working pressure of the motor is improved.
3, the series of motor crankshaft with a split structure, improve the life of the crankshaft.
4, the key parts of the series of motor with special materials and heat treatment process, effectively improve the motor life.
5, the series of motor dimensions and performance parameters and (KAWASAKI-STAFFA HMB series motor) consistent, can be directly replace imports.
Precautions
In addition to the DM series motor, pay attention to the following points:

Because the series of motors using a static pressure balance structure, so that the motor increased leakage, with particular attention to the external drain pipe, the diameter of the drain pipe can not be less than 1 2mm, or will break the oil seal. When the tubing connection is received, the length of the screw thread can not be too long to avoid damage to the part.
